Tritan Pumps

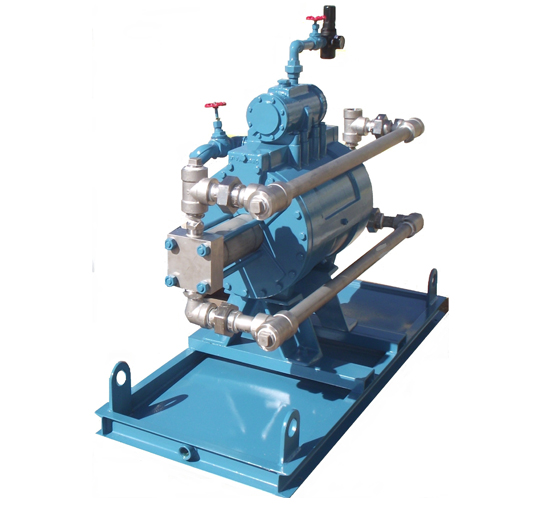

Mac 14

This high pressure pump is designed for pressure testing and chemical injection with high-volume rates and weighs in at 540 lbs. Positive displacement, stroke rate and adjustment for accuracy. Designed using a power piston size of 14", stroke length 4 �", cycles/minute adjustable to 60, and input pressure at 100 PSI. Mac-14's power gas max cons. 385 SCFM and its temperature limits are -20 to 140F. Optional equipment for this chemical pump: skid base, guard rail, lifting eyes, casters, pull tongue, special coating systems, sour gas modifications, complete hydrotest and chemical injection packages.

Plunger Size (in.) Volume - Gallons @ 60 cpm Operating Pressure Stall Pressure Min. Hr. Day @ 100 psi Input 1 1.65 99 2,380 13,370 16,230 1 1/4 2.60 155 3,720 8,550 10,386 1 1/2 3.70 223 5,354 5,904 7,210 1 3/4 5.00 304 7,290 4,365 5,300 2 1/2 10.30 620 14,870 2,140 2,595 3 14.80 892 21,415 1,485 1,800 3 1/2 20.00 1,200 28,800 1,090 1,325 4 26.40 1,585 38,070 835 1,015

Volume based on 90% theoretical maximum. Stall pressure based on 85% efficiency. Gas consumption @ 100 psi and 60 cpm = 385 SCFM. Click to download Product Spec's
